LK-FCPD InGaAs Photodetector

  • ሰፊ የመተላለፊያ ይዘት
  • የተዋሃደ ባያስ-ቲ
  • O/E Hybrid Integrated
  • Low Noise, Broadband
  • SMA አያያዥ
  • ዝቅተኛ የጨለማ ፍሰት፣ ከፍተኛ የሲግናል-ወደ-ጫጫታ ጥምርታ።
  • አነስተኛ የቅርጽ ሁኔታ።
ጥያቄ

+ 86 29 88244373

የምርት ማብራሪያ

The Fiber-Coupled Photodetector (FCPD) is an advanced optoelectronic hybrid system, incorporating a broadband Indium Gallium Arsenide (InGaAs) photodiode. The InGaAs PIN photodiode is designed to respond to wavelengths ranging from 1000 to 1650 nanometers. LK-FCPD is capable of providing bandwidths of 1 gigahertz, 2.5 gigahertz, and offers customizable solutions with a maximum bandwidth capability of 8 gigahertz. The device is powered by a +5-volt supply voltage and is equipped with a standard FC (face-contacted) fiber-optic connector for optical input. The Radio Frequency (RF) output is facilitated through an SMA-compatible connector, which is impedance-matched to 50 ohms.

LK-FCPD is lightweight, less than 15 grams, which is advantageous for applications requiring minimal mass. The device is compliant with the Restriction of Hazardous Substances (RoHS) Directive 2.0, ensuring that it meets stringent environmental and safety regulations.

የቴክኒክ ዝርዝር
የተለመደው እና ፍፁም ከፍተኛ ደረጃ
የልኬት ሲም። ዓይነት ደረጃ አሰጣጥ መለኪያ
የማጠራቀሚያ የሙቀት መጠን ክልል TSTG -45 ～ +85 -55 ～ +100 ℃
የአሠራር መያዣ የሙቀት ክልል TC 25 -40 ～ +70 ℃
አድሏዊ ቮልቴጅ VR +5 +4.75 ～ +5.25 V
የኦፕቲካል ግቤት ኃይል ጭንቅላታም መያያዣ መርፌ 0 +5 dBm
የኦፕቲካል ኃይል ማቃጠል PB - + 13 dBm
የእርሳስ ብየዳ ሙቀት Tp 280 (10 ሰ) 330 (10 ሰ) ℃
የኤሌክትሪክ / የኦፕቲካል ባህሪያት ( ቲC = 22 ± 3 ℃ )
የልኬት ምልክት የሙከራ ሁኔታ የመለኪያ እሴቶች መለኪያ
የሞገድ ክልል λ - 1000 እስከ 1650 nm
የድግግሞሽ ክልል - - ኤል ባንድ ኤስ ባንድ CM -
አነስተኛ የሲግናል ባንድዊድዝ f-3dB TC = 22 ± 3℃ 0.03 ~ 1 0.03 ~ 2.5 0.1 ~ 8 GHz
ምላሽ Re VR =+5V,  Pin =1MW λ = 1310 nm 0.90 ≥ 0.90 ≥ 0.90 ≥ ሀ / ወ
λ = 1550 nm 0.90 ≥ 0.90 ≥ 0.90 ≥
የአምፒዩትድ ጠፍጣፋነት A TC =-40～+70 ℃ ≤ ± 1.5 ≤ ±2 dB
ውጤት VSWR VSWR - ≤ 2 ≤ 2.2 -
የሙሌት ኦፕቲካል ኃይል Ps VR = +5 V, λ = 1550 nm
የኤሲ ሞዱሌትድ		 +5 dBm
Saturation RF Output Power Pውጭ - -10 dBm
ጨለማ ወቅታዊ ID - ≤10 nA
የውጤት ተፅእኖ RL - 50 Ω

● የተለመዱ የምላሽ ኩርባዎች

Fig . 1 L- Band FCPD InGaAs Photodetector Frequency Response

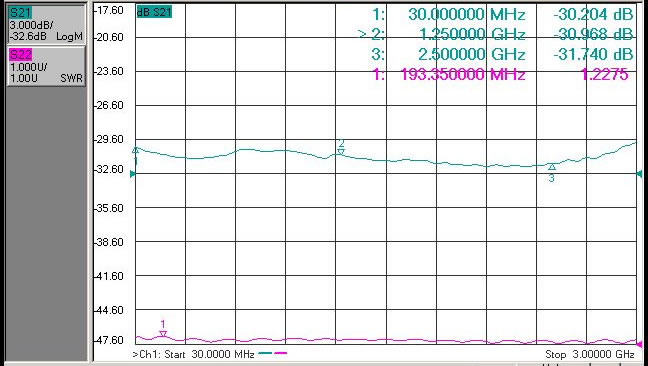

Fig . 2 S- Band FCPD InGaAs Photodetector Frequency Response

Fig . 3 C- Band FCPD InGaAs Photodetector Frequency Response

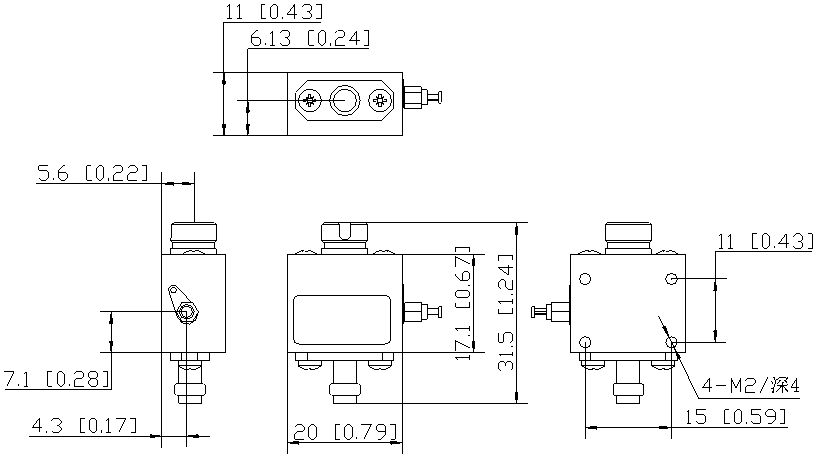

●ልኬት እና ፒኖች (ክፍል፡ ሚሜ[ኢንች])

Optical Connector：FC(face-contacted) fiber-optic connector

የRF አገናኝ፡ SMA

●መረጃ ተራ ማስያዝ

ሉህ 1፡

ኮድ አናሎግ ባንድዊድዝ
L 0.03 ~ 1 ጊኸ
S 0.03 ~ 2.5 ጊኸ
CM Customization ( ≦ 8GHz )

● ጥንቃቄዎች

  • Be sure the fiber coupling facet is clean before connecting it to opto-circuit .

  • RF interface and optical interface shall be covered with dust cap when not in use.

  • The suitable ESD protection is required in storage, transportation
